ZX Spectrum IC4

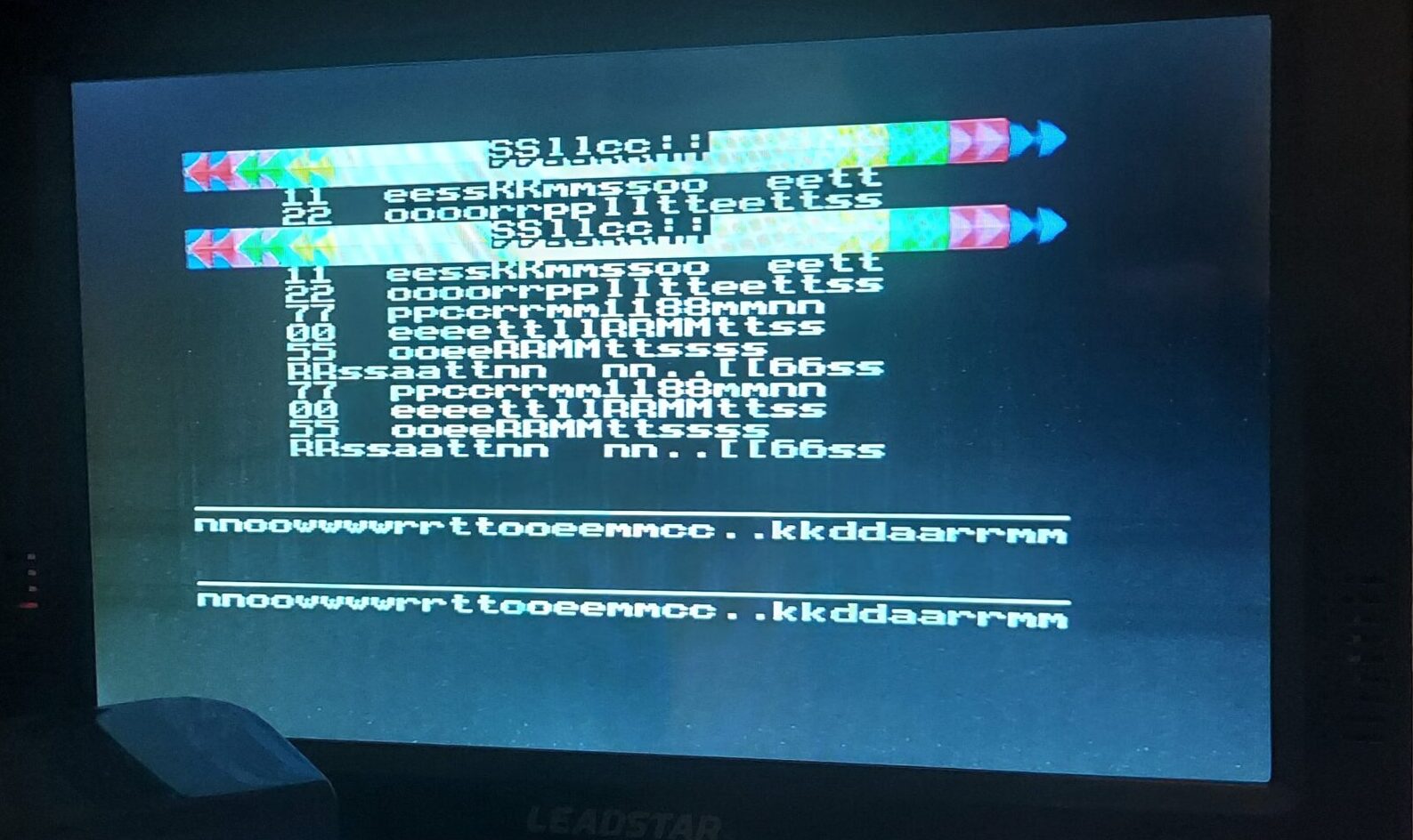

The IC4, like the IC3 – 74LS157N – is for the lower 16K of RAM, a bad chip or trace will usually manifest itself as corrupt graphics on the screen
A modern replacement can be found here:
| Shop | Link |
|---|---|
| RetroRevivalShop | https://retrorevivalshop.co.uk/index.php?main_page=product_info&products_id=35 |
| Retroleum | https://www.retroleum.co.uk/zx-spectrum-chips |

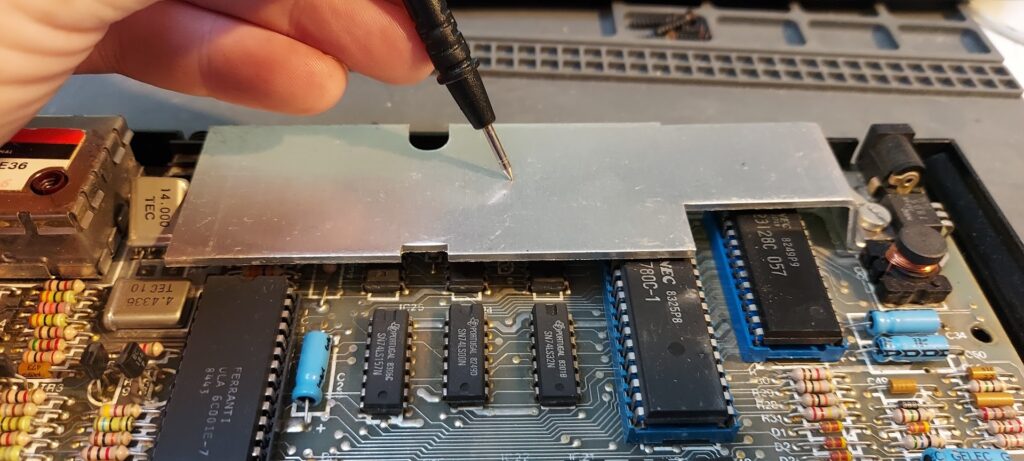

Using a multimeter check the traces for IC4, the the diagram below for chip pin position
| Pin | Traces to | Voltage |
|---|---|---|
| 1 | IC3 Pin 1 | |
| 2 | IC2 Pin 38 | |
| 3 | IC26 Pin 3 | |
| 4 | R18 Right | |
| 5 | IC26 Pin 5 | |
| 6 | IC26 Pin 6 | |
| 7 | R17 Right | |
| 8 | IC26 Pin 8 | |
| 9 | ||
| 10 | ||
| 11 | ||
| 12 | R19 Right | |
| 13 | IC26 Pin 13 | |
| 14 | IC26 Pin 14 | |
| 15 | IC26 Pin 15 | |
| 16 | IC26 Pin 16 |
