Lego ZX Spectrum

Tool	Link
ZX Spectrum Lego Studio File	Download
BrickLink Studio	Link

Two of my favourite things in the world are the ZX Spectrum and Lego, so why not combine the both. Lego has made a few retro sets now, with the NES and the Atari 2600 but nothing from the golden era of UK computing.

Setting about to make my own version I firstly tried creating a exact size replica, although I could match the size, it was missing a column of keys so I felt I had to make it larger than reality to fit in a full keyboard.

I will revisit this at a future date to see if I can get it any better using some tricks to fit in another key column as I do like the size.

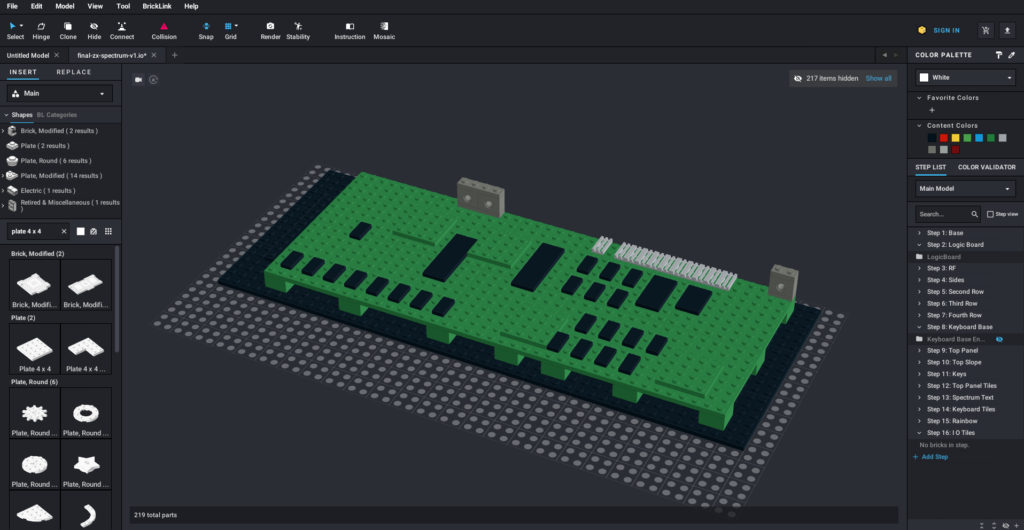

To create the design I used the tool Studio from BrickLink which you can find at https://www.bricklink.com/v3/studio/download.page

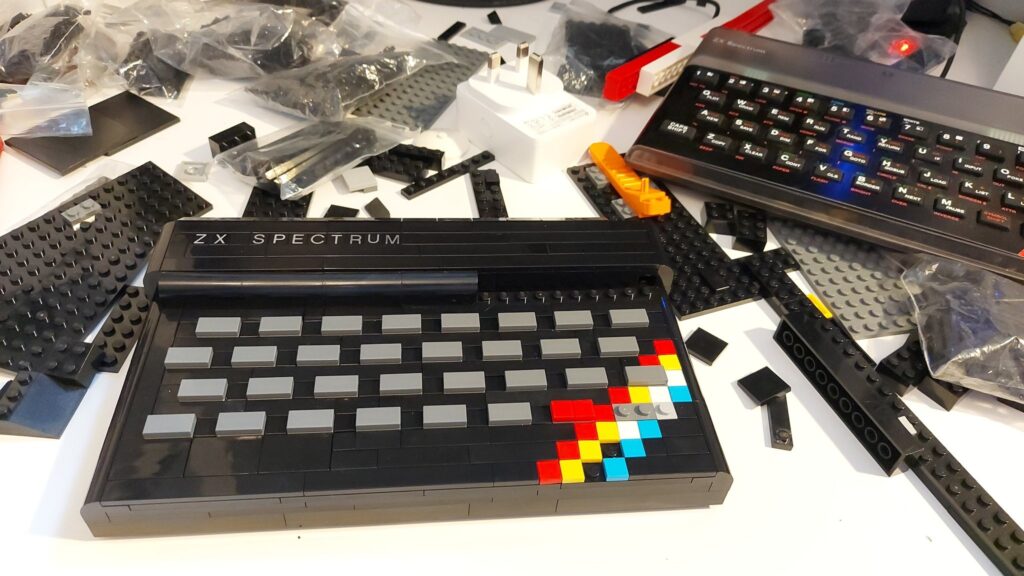

All that was needed now was the bricks. A great feature of Studio is that you can upload your design to their site, and then it will find the most cost effective suppliers of the bricks. After a brief wait everything had arrived and time to build

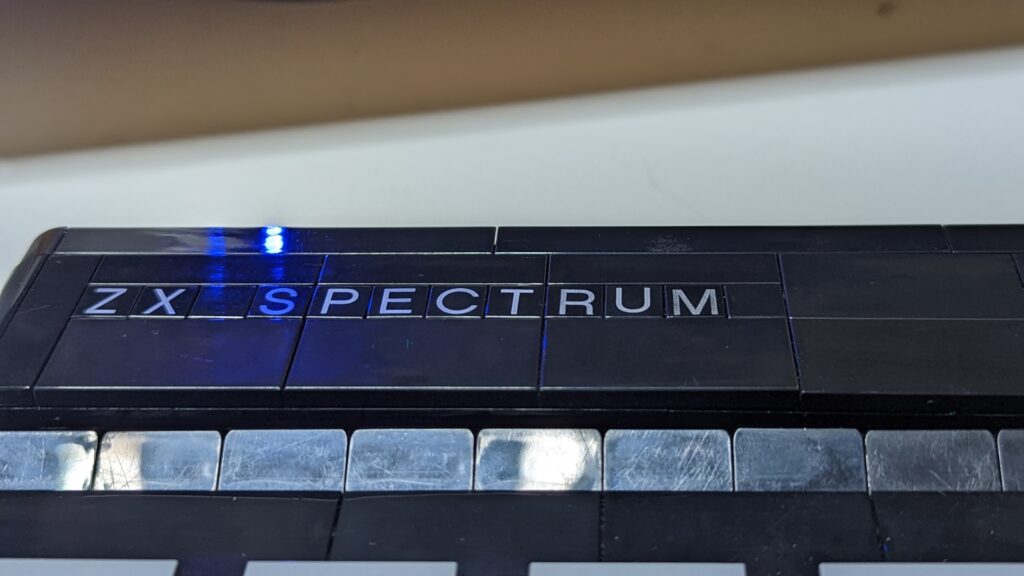

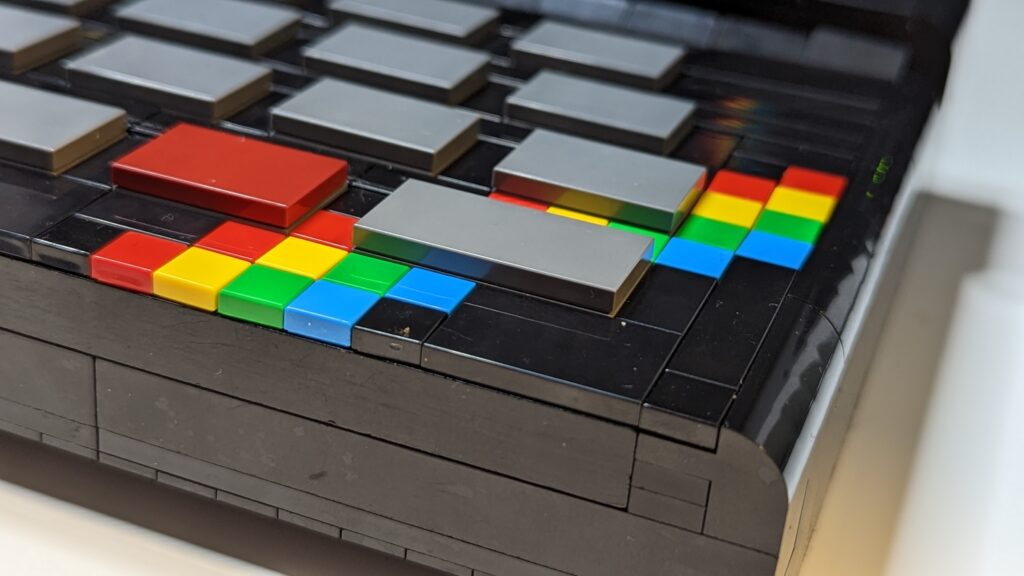

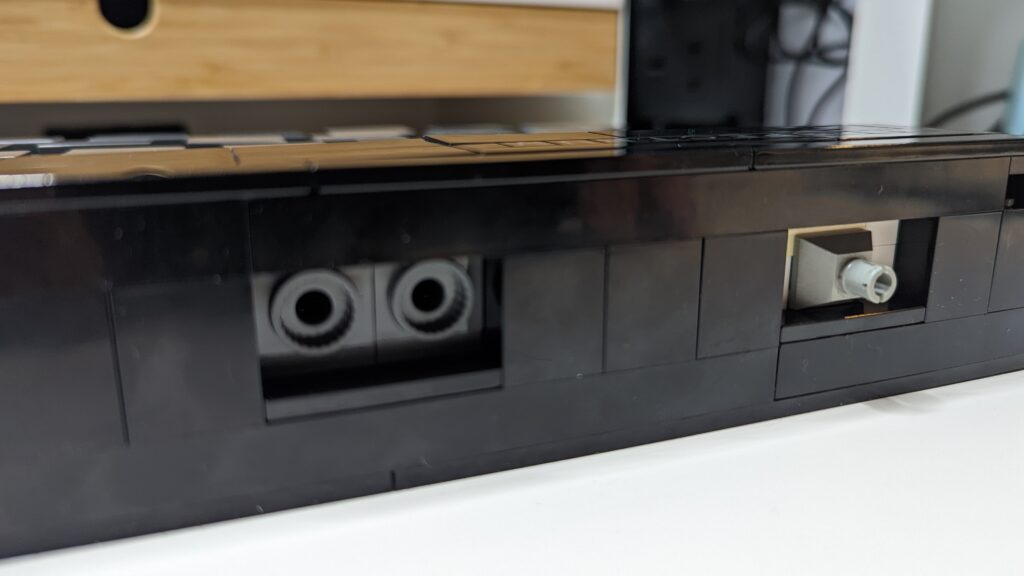

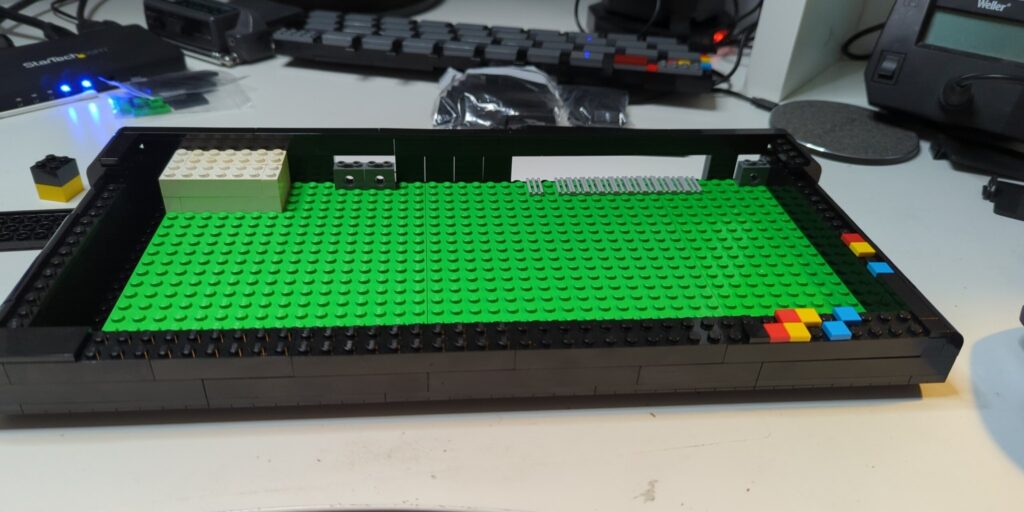

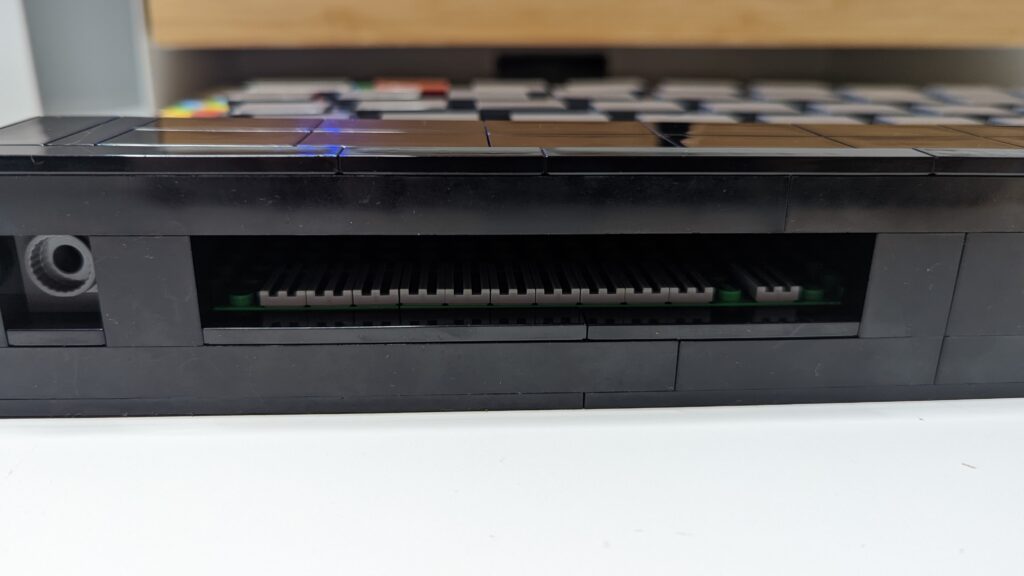

Final result I am happy with, next step is to make instructions using the generator in Studio, however this is a large job and I have to start creating sub models to break it up properly, this page will update when they are ready, to be alerted signup to the newsletter at the bottom of the page, don’t worry, it’ll only be ever very occasional emails when something of interest is made. But for the moment you can open the file at the top of this page in Studio and see each Step and how to put it all together.

Finally what sort of Lego model would it be without a box. I started a design for a box to put the pieces in, I am currently looking at printing this along with the instructions when ready to make a nice gift for fellow retro enthusiasts.

You can find the latest model at my GitHub at https://github.com/lostretrotapes/lego-zx-spectrum

Parts List

BLItemNo	ElementId	PartName	ColorName	Qty
13547	6039869	Slope, Curved 4 x 1 Inverted	Black	46
2356	4181123	Brick 4 x 6	Light Gray	1
2412b	4211350	Tile, Modified 1 x 2 Grille with Bottom Groove / Lip	Light Bluish Gray	11
2431	243126	Tile 1 x 4	Black	4
2456	4181144	Brick 2 x 6	Black	2
2465	246526	Brick 1 x 16	Black	2
26603	6187008	Tile 2 x 3	Dark Bluish Gray	37
26603	6162892	Tile 2 x 3	Black	3
26603		Tile 2 x 3	Dark Red	1
3001	300126	Brick 2 x 4	Black	16
3003	300328	Brick 2 x 2	Green	15
3003	300326	Brick 2 x 2	Black	4
3004	300402	Brick 1 x 2	Light Gray	1
3005	300502	Brick 1 x 1	Light Gray	1
3006	4617860	Brick 2 x 10	Black	30
3007	6037390	Brick 2 x 8	Black	14
3009	300902	Brick 1 x 6	Light Gray	1
3009	300926	Brick 1 x 6	Black	1
3010	301002	Brick 1 x 4	Light Gray	3
3020	302026	Plate 2 x 4	Black	3
3020	4211065	Plate 2 x 4	Dark Bluish Gray	2
3021	6205703	Plate 2 x 3	Dark Red	1
3021	4211043	Plate 2 x 3	Dark Bluish Gray	37
3022	302226	Plate 2 x 2	Black	2
3023	4211063	Plate 1 x 2	Dark Bluish Gray	2
3023old		Plate 1 x 2 with Bottom Pin	Light Gray	4
3024	302426	Plate 1 x 1	Black	8
3029	302926	Plate 4 x 12	Black	1
3030	303026	Plate 4 x 10	Black	5
3031	4243819	Plate 4 x 4	Black	2
3031	4617799	Plate 4 x 4	Bright Green	4
3031	4243821	Plate 4 x 4	Green	4
3032	303226	Plate 4 x 6	Black	3
3035	303526	Plate 4 x 8	Black	8
3068b	306826	Tile 2 x 2 with Groove	Black	3
3069b	306926	Tile 1 x 2 with Groove	Black	61
3070b	307024	Tile 1 x 1 with Groove	Yellow	5
3070b	6172375	Tile 1 x 1 with Groove	Bright Green	5
3070b	6151658	Tile 1 x 1 with Groove	Dark Azure	4
3070b	307021	Tile 1 x 1 with Groove	Red	6
3070b	307026	Tile 1 x 1 with Groove	Black	5
3070bpb011	6044183	Tile 1 x 1 with Groove with Silver Capital Letter C Pattern	Black	1
3070bpb013	6044148	Tile 1 x 1 with Groove with Silver Capital Letter E Pattern	Black	1
3070bpb021	6044174	Tile 1 x 1 with Groove with Silver Capital Letter M Pattern	Black	1
3070bpb024	6044159	Tile 1 x 1 with Groove with Silver Capital Letter P Pattern	Black	1
3070bpb026	6044184	Tile 1 x 1 with Groove with Silver Capital Letter R Pattern	Black	1
3070bpb027	6044190	Tile 1 x 1 with Groove with Silver Capital Letter S Pattern	Black	1
3070bpb028	6044198	Tile 1 x 1 with Groove with Silver Capital Letter T Pattern	Black	1
3070bpb029	6044186	Tile 1 x 1 with Groove with Silver Capital Letter U Pattern	Black	1
3070bpb032	6044212	Tile 1 x 1 with Groove with Silver Capital Letter X Pattern	Black	1
3070bpb034	6044201	Tile 1 x 1 with Groove with Silver Capital Letter Z Pattern	Black	1
3245c	4618852	Brick 1 x 2 x 2 with Inside Stud Holder	Black	11
3456	345626	Plate 6 x 14	Black	13
3481		Plate, Modified 2 x 2 with Helicopter Tail Rotor Holder	Light Gray	1
3710	4211001	Plate 1 x 4	Dark Bluish Gray	2
3710	371026	Plate 1 x 4	Black	2
3832	383226	Plate 2 x 10	Black	3
41539	4161677	Plate 8 x 8	Green	10
4162	416226	Tile 1 x 8	Black	22
4282	428226	Plate 2 x 16	Black	4
6081	6174252	Slope, Curved 2 x 4 x 1 1/3 with 4 Recessed Studs	Black	8
6091		Slope, Curved 2 x 1 x 1 1/3 with Recessed Stud	Bright Green	1
6091	6411366	Slope, Curved 2 x 1 x 1 1/3 with Recessed Stud	Dark Azure	1
6091	6361082	Slope, Curved 2 x 1 x 1 1/3 with Recessed Stud	Yellow	1
6091	6184782	Slope, Curved 2 x 1 x 1 1/3 with Recessed Stud	Red	1
6091	6184784	Slope, Curved 2 x 1 x 1 1/3 with Recessed Stud	Black	6
6111	611126	Brick 1 x 10	Black	5
63864	4558170	Tile 1 x 3	Black	3
6636	663626	Tile 1 x 6	Black	2
69729	6318582	Tile 2 x 6	Black	2
80431		Technic, Brick Modified 1 x 2 x 1 1/3 with Rotation Joint Socket	Dark Bluish Gray	3
85984	4548180	Slope 30 1 x 2 x 2/3	Black	22
87079	4560184	Tile 2 x 4	Dark Bluish Gray	2
87079	4560182	Tile 2 x 4	Black	40
